LED Display IP Rating

IP ratings are one of the most critical specifications for LED displays, determining where and how they can be safely installed. This guide explains what IP codes mean, which ratings are recommended for different environments, how testing works, and practical steps for upgrading and maintaining protection.

Basic IP Definition & How To Read IP Codes

IP stands for Ingress Protection. It is a global standard grading system defined by IEC 60529, used to judge how well electronic devices block dust and water from entering. For LED displays, the IP rating directly indicates the screen’s suitability for indoor, semi-outdoor, or outdoor environments.

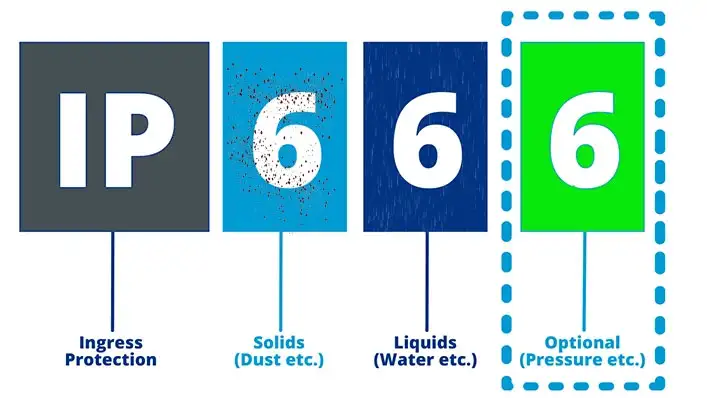

All IP codes follow the format IPXY, where:

• X (first digit) – Solid particle protection (dust): rated from 0 (no protection) to 6 (dust-tight).
• Y (second digit) – Liquid ingress protection (water): rated from 0 (no protection) to 9K (high-pressure hot water).

Larger numbers mean stronger sealing ability. For example, IP54 blocks most indoor dust and accidental water splashes. IP65 is fully dust-tight and resists low-pressure rain jets, making it the most popular grade for outdoor LED walls. IP67 supports short-time shallow water submersion for extreme weather locations.

A common misunderstanding is that IP65 screens are completely immune to all environmental damage. IP testing only evaluates dust and liquid penetration. It does not cover UV sunlight aging, salt fog corrosion, or physical collision damage. An IP-certified screen still requires regular maintenance for long-term reliability.

Recommended IP Ratings For Every Installation Scenario

Selecting the correct IP rating depends on the installation environment. Below are the recommended ratings for common LED display applications.

Standard indoor lobbies, galleries, and meeting rooms only need IP40 to IP54 to block daily floating dust and spilled water. Fixed outdoor billboards and building facade displays need at minimum IP65 to resist all-year rain and outdoor dust. For seaside areas with heavy salt wind, IP66 or higher is required.

Rental event screens balance portability and protection, so IP54 to IP65 is standard. Transparent and flexible LED screens mostly adopt front-side IP65 protection, while the rear cabinet IP grade depends on whether a closed protective enclosure is installed.

Front-service LED panels maintain consistent sealing after repeated opening, so they hold stable IP performance. Rear-maintenance walls have more exposed wiring gaps, which require upgraded gaskets and cable glands to achieve the same IP level. IP45 is often cited as the commercial baseline, as anything lower cannot resist common environmental interference in public spaces.

Official Testing Standards: IEC 60529, IPx9K, and IP vs. IK Rating

All IP certification testing follows the IEC 60529 international standard, the single recognized benchmark for ingress protection testing worldwide.

Dust testing uses sealed dust chambers with fixed particle size and testing duration to check internal particle buildup. Water testing covers vertical dripping, side splashing, pressure jet spraying, and temporary full submersion for different Y-digit grades.

IPx9K is a special high-pressure hot water wash certification. Screens passing this test can withstand 80°C high-temperature high-pressure flushing. However, even with this rating, daily high-pressure cleaning is not recommended without proper precautions.

It is important to distinguish between IP (Ingress Protection) and IK (Impact Protection). IP tests dust and water sealing, while IK measures mechanical collision and impact resistance against heavy objects. Long-life outdoor LED projects need both qualified IP waterproof grades and IK10 impact protection.

To verify a supplier’s IP claim, ask for complete IEC 60529 laboratory test reports, including raw testing time, water pressure parameters, and dust particle data. Trust only reports from independent third-party labs.

Design, Installation & Upgrading To Improve IP Protection

If an existing LED wall has weak water resistance, there are several actionable solutions:

• Replace aged rubber gaskets.
• Install sealed waterproof cable glands for all wiring holes.
• Add external rain protective covers.
• Fill gaps between modules with waterproof sealant.

Front-service panels maintain stable sealing after repeated inspection. Rear-service cabinets expose internal wiring gaps every time the back door is opened, requiring extra waterproof connectors and potting glue for power supplies.

All external connectors and power units must match the module’s overall IP grade. Outdoor projects require fully potted power supplies and IP65-rated waterproof quick-disconnect plugs to avoid water vapor entering circuit boards.

Upgrading old low-IP screens to higher protection grades is cost-effective in rainy areas, where it can cut circuit corrosion repair costs by more than 60%. Dry indoor spaces usually do not need expensive IP modification.

To retain original IP performance long-term:

• Inspect gaskets for cracking every quarter.
• Avoid high-pressure water washing on screens without IPx9K certification.

Matching the IP grade to the environment is critical for warranty coverage. Installing an IP54 screen outdoors without modification will void all water damage warranty claims.

Next Step For Custom IP Rating Project Advice

For professional tailored suggestions—whether for a museum transparent LED screen by the sea or a large outdoor billboard—submit your project details including installation type (front or rear maintenance), local climate (coastal or dry urban), screen size, and content type. Our team will provide a free one-page IP rating specification chart, sample IEC 60529 lab test reports, and a detailed cost estimate matching your required protection level. We also offer on-site environmental assessment to confirm the most cost-effective IP grade without overpaying for unnecessary high-end sealing structures.

Frequently Asked Questions

IP Ratings – What are they?

IP ratings are international IEC 60529 standards that measure electronic equipment’s ability to block solid dust and liquid water from internal circuits.

What is IP?

IP stands for Ingress Protection, the unified global grading system for sealing and environmental resistance testing.

What are LED IP Ratings?

LED IP Ratings refer to dedicated dustproof and waterproof grades for LED display modules, which decide which indoor or outdoor environments the screen can safely operate within.

What IP rating do I need for an outdoor LED screen?

General open-air fixed screens require IP65; seaside, high-humidity, and heavy rain locations need IP66 or higher anti-salt-fog protection.

Can I upgrade my LED display to a higher IP rating?

Yes. You can upgrade protection by replacing aging gaskets, adding waterproof cable glands, installing external rain covers, and reinforcing all structural gaps with sealant.

What’s the difference between IP65 and IP66 for LED displays?

IP65 withstands standard low-pressure rain jets for general outdoor use. IP66 resists heavy high-volume storm spray and salt fog, designed for harsh open and coastal environments.

How does IP rating affect warranty and maintenance for LED displays?

Correct IP matching reduces corrosion failures and repair frequency, and retains full manufacturer warranty coverage. Using low-IP screens in outdoor harsh environments will void all water damage warranty claims.
