High Transparency
60% transparency, turning building curtain walls into realistic video walls.
LED Curtain Screen
The see-through LED transparent screen is an innovative display solution designed to minimize visual impact on architectural aesthetics while delivering a unique viewing experience.
Composed of lightweight, modular panels available in various pixel pitches to suit different project requirements, it offers exceptional adaptability.
With IP-rated moisture and dust resistance, easy maintenance, and a robust, damage-resistant structure, it ensures reliable long-term performance.
Composed of lightweight, modular panels available in various pixel pitches to suit different project requirements, it offers exceptional adaptability.
With IP-rated moisture and dust resistance, easy maintenance, and a robust, damage-resistant structure, it ensures reliable long-term performance.
2026 New LED Curtain Screen Solutions for You
After submission, our advisor will respond with a quote within 1 business hour. Your information is strictly confidential, and we promise no leakage or spam.
Key Advantages of LED Curtain Screen
Lightweight, high-transparency and durable design, ideal for architectural lighting and commercial displays
Thin & Lightweight
Lightweight design at 18kg/m², enabling easy installation and maintenance.
No Steel Structure Needed
Can be directly mounted on building walls without additional steel frames.
Energy Saving
Uses high-efficiency LEDs and power supplies, cutting power consumption by over 50% vs traditional screens.
High Protection Rating
Industry-leading IP67 full-screen protection, extending product service life.
All-Weather Performance
Operates reliably from -30°C to 60°C, with wind-resistant design for strong winds.
Where LED Curtain Screen Shines
Elevate spaces with transparent, lightweight, and flexible visual experiences
Commercial Estate
Suitable for glass curtain walls, shopping mall facades, and sightseeing elevator curtain walls, creating eye-catching brand displays without compromising architectural aesthetics.
Landmark Building Multimedia
Perfect for iconic building facades, theaters, towers, and sports venues, transforming structures into dynamic multimedia landmarks.
Traffic Advertising Media
Ideal for high-traffic public spaces including airport terminals, high-speed railway stations, subway stations, and bus terminals for high-impact advertising.
Creative Display
Widely used in bars, stage events, cultural tourism landscapes, and TV shows, enabling unique and immersive creative visual presentations.
2026 New LED Curtain Screen Solutions for You
After submission, our advisor will respond with a quote within 1 business hour. Your information is strictly confidential, and we promise no leakage or spam.

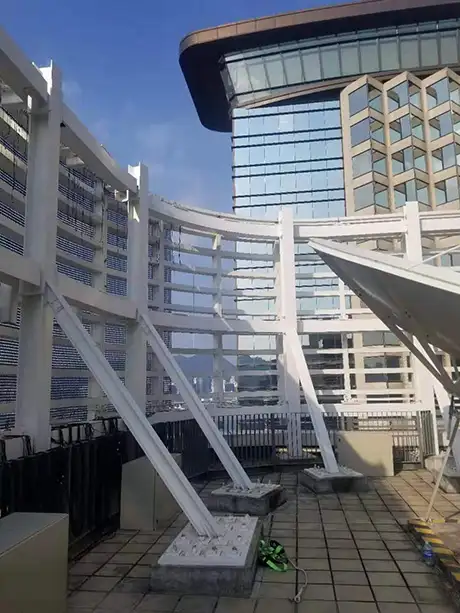

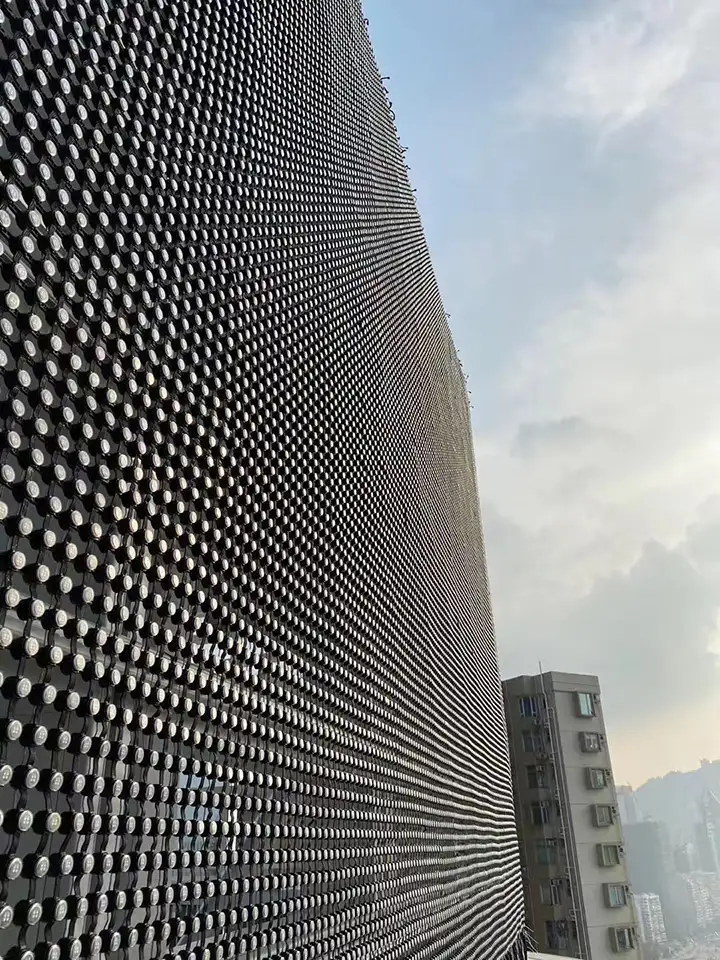

Real-World Projects
See how our LED Curtain Screen transform spaces worldwide
Products
LED Curtain Screen Technical Specifications
Key Parameters of Our LED Curtain Screen
| Parameter | ZR-GS-P25-16 | ZR-GS-P25-25 | ZR-GS-P31.25-31.25 |
|---|---|---|---|
| Product Model | ZR-GS-P25-16 | ZR-GS-P25-25 | ZR-GS-P31.25-31.25 |
| Shell Material | Aluminum Profile | Aluminum Profile | Aluminum Profile |
| LED Configuration | DIP 1R1G1B | DIP 1R1G1B | DIP 1R1G1B |
| Pixel Pitch (H/V) | 25.6mm / 16mm | 25.6mm / 16mm | 32mm / 31.25mm |
| Pixel Density | 2438 dots/㎡ | 1562 dots/㎡ | 1000 dots/㎡ |
| Module Dimension | 256 × 1536 mm | 256 × 1600 mm | 256 × 1500 mm |
| Module Resolution | 10 × 96 dots | 10 × 64 dots | 8 × 48 dots |
| Brightness | 8000 nits | 6000–8000 nits | 7000 nits |
| Transparency | 60% | 60% | 70% |
| Weight | 18 kg/㎡ | 18 kg/㎡ | 18 kg/㎡ |
| Input Voltage | AC 110–240V | AC 110–240V | AC 110–240V |
| Max. Power Consumption | 400 W/m | 400 W/m | 400 W/m |
| IP Rating | IP67 | IP67 | IP67 |
| Gray Scale | RGB 16384 bit (3×14bit) | RGB 16384 bit (3×14bit) | RGB 16384 bit (3×14bit) |
| Refresh Rate | ≥ 1920 Hz | ≥ 1920 Hz | ≥ 1920 Hz |
| Repeat Frequency | ≥ 60 Hz | ≥ 60 Hz | ≥ 60 Hz |
| Working Environment | T: -30℃ ~ 60℃; H: 10% ~ 90% | T: -30℃ ~ 60℃; H: 10% ~ 90% | T: -30℃ ~ 60℃; H: 10% ~ 90% |
Why Luminatii
Built on In-House Manufacturing & National High-Tech Expertise
Large-Scale Project Experience
Official LED display supplier for the 19th Asian Games Opening Ceremony, proven for 5000㎡+ large-scale projects.
Global Validation with Export to 87 Countries
Products exported to 87 countries & regions, backed by a global sales and service network.
Comprehensive Product Line with High Specifications
Full portfolio including transparent/mesh/flexible screens, IP65/IP67 rated with brightness up to 5000 cd/m².
Display Solutions Born for Creativity
Fully customizable panels for irregular shapes, with transparent screens that preserve building aesthetics.
Frequently Asked Questions
LED Curtain Screen is a lightweight, high-transparency outdoor display solution designed for building facades and glass curtain walls. With an open grid structure, it delivers vivid visuals while preserving the building’s architectural aesthetics.
It features 60–70% transparency, ultra-lightweight design (18kg/㎡), no need for complex steel structures, and 50% lower power consumption. Its IP67 rating also ensures reliable outdoor performance.
Yes. The screen has an IP67 full waterproof and dustproof rating, operates reliably from -30℃ to 60℃, and features a wind-resistant design to handle strong winds in exposed locations.
It is widely used in commercial buildings, shopping mall facades, landmark towers, high-speed rail stations, and sports venues for large-scale advertising and brand promotion.
No. Its modular design is easy to install directly on building walls without steel frames. Lightweight modules also simplify maintenance and reduce on-site labor costs.
